Gravel-Pack Single

Single bag

Waterproof pannier bag with roll closure and Quick-Lock mounting system.

Color: black matt

Mounting system

QL3.1 QL2.2

SKU: F9989

In stock – Delivery time: 2-3 business days

5 year

5-Year Warranty

ORTLIEB-Warranty

The ORTLIEB warranty, limited to five years, is a voluntary warranty provided by the manufacturer. It grants additional rights independent of the rights granted by consumer protection laws. Should a product be replaced within the warranty period, the date of first delivery continues to apply to the five-year warranty period.

This worldwide, free of charge warranty of five years from delivery refers to material defects and processing errors. Scuff marks, holes and cracks caused by the customer's own fault are not covered by the warranty. Claims for defects due to normal wear and tear, improper use, non-observance of the assembly instructions, third-party intervention as well as due to improper storage are excluded. No warranty is given for damage due to improper care and improper use. As a rule, however, such damage can be repaired at cost price.

Consumer Protection Law

Important: The provisions of the ORTLIEB warranty, which is limited to five years, do not apply to claims arising from statutory consumer protection rights. These statutory rights are not limited by the warranty. Thus, the benefits under the five-year limited ORTLIEB warranty are intended to supplement and not replace the rights granted by consumer protection laws.

If a product is defective, consumers may in particular claim the rights under §§ 434 et seq., §§ 474 et seq. of the German BGB (German Civil Code). Consumers can choose whether to claim performance under the ORTLIEB warranty, which is limited to five years, or under their statutory consumer protection rights.

The first point of contact for warranty claims is always the specialist or online dealer with whom the purchase contract for the product was concluded. This warranty is subject to the laws of the Federal Republic of Germany.

Status: July 2022

of 5 € apply.

80 €

Tax included.

For every order over €120, we protect 1 m² of rainforest. Learn more about why and how it works here.

Gravel-Pack Single

80 €

The ORTLIEB Gravel-Pack is a waterproof single bag with a volume of 14.5 litres. It offers reliable storage space for provisions, cooking utensils or additional equipment.

The lightweight and abrasion-resistant material is designed for tough conditions on gravel and stone tracks. The waterproof roll closure ensures that adverse weather conditions cannot damage your luggage. Waterproofing is standard.

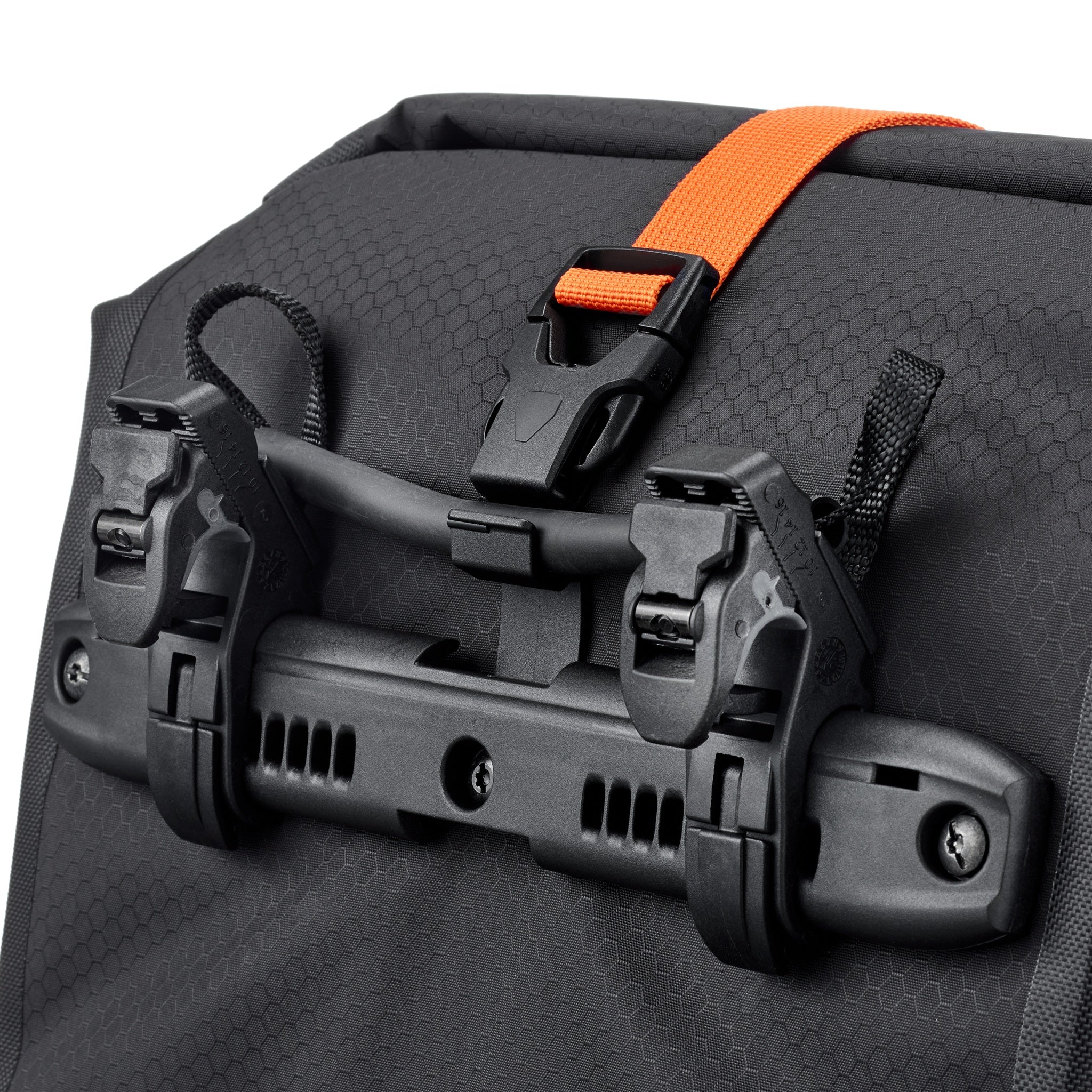

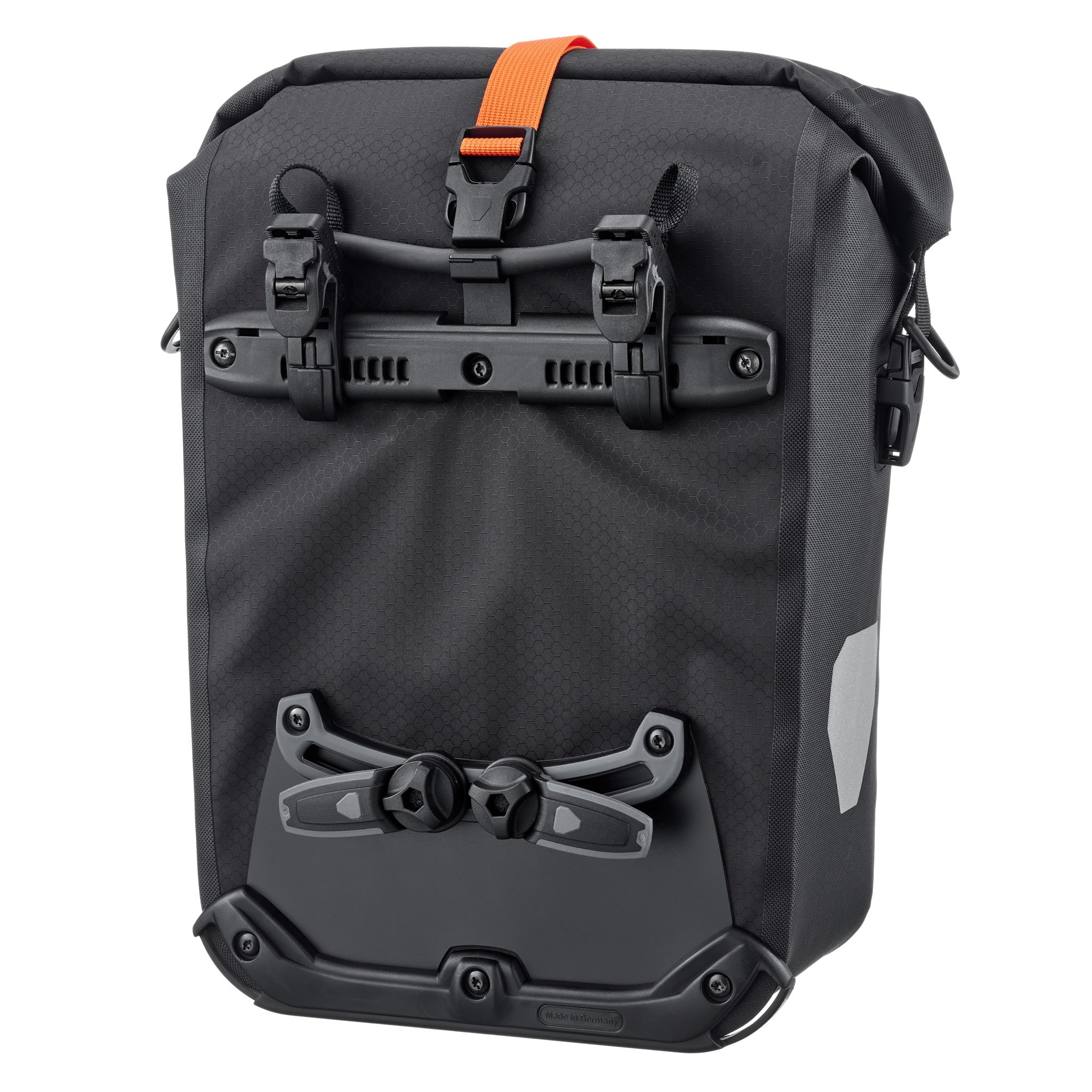

The proven Quick-Lock mounting system attaches the Gravel-Pack securely and stably to the luggage rack. This makes the bag suitable for gravel, mountain or fat bikes. It secures your equipment during multi-day tours or races.

Specifications

Height

37 cm

Width

26 cm

Depth

12 cm

Volume

14.5 L

Load

12.5 kg

Weight

640 g

SKU

F9989

Waterproof

Yes ()

IP Ratings

The IP rating is an international standard that indicates how well a product is protected against dust and water.

The Gravel-Pack Single meets the IP64 protection rating:

Even in very heavy rain and splashing water, the contents stay perfectly dry. The Gravel-Pack Single is therefore ideal for longer outdoor adventures in stormy conditions.

All protection ratings at a glance

IP67

The product is dust-tight and protected against temporary immersion (up to 1 m for 30 min.).

IP64

The product is dust-tight and protected against splashing water from all directions.

IP54

The product is dust-protected and protected against splashing water from all directions.

IP53

The product is dust-protected and protected against spraying water up to 60° from vertical.

Material

PU-coated Nylon (PS21R, PS33)

Mounting System

Quick-Lock2.2

Downloads

Instruction

Scope of delivery

1x pannier with QL2.2 moutning system

Spare parts

Carrying strap with carabiners (145 cm)

Stecker X-Stealth mit Gurtband

Repair kit for -Stealth- side-release buckles

QL2.1 Mounting Hooks

Semi-elliptical bracket for lower QL2.1 anchoring hook

Screw set

Stealth auxiliary closure strap QL2.1, black

Short QL2.1-rail with screws, without hooks

Edge protection QL2.1

QL2.2 Hooks

QL1/ 2/ 2.1/ 2.2 Anchoring hook

Warnings and safety information

Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 100 km, 500 km, 1000 km and 1500 km and retighten them if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 9 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Our mounting systems compared

The Quick-Lock mounting systems on ORTLIEB bike bags allow the bags to be attached to bike racks quickly and securely. They are also known as self-locking mounting systems, because bike bags equipped with this system can be hooked onto the rack easily and securely. All mounting components are very easy to replace in the event of damage.

To the detailed overview of the mounting systems

Current variant Current variantQuick-Lock2.2

Quick-Lock3.1

Quick-Lock2.1

The evolution of the QL2.1 system, with higher payload and quick switching between different bikes.

The QL3.1 system secures the bag to the rack particularly quickly and easily and offers excellent carrying comfort away from the bike.

ORTLIEB’s most proven mounting system, trusted by millions of satisfied cyclists.

Feature

Quick, tool-free adjustment without reducer inserts

Back of bag is free of protruding hooks

Tool-free adjustment

Maximum payload

12.5 kg

9 kg

Compatible racks

Compatible with all conventional luggage racks

For racks with QL3.1-compatible mounting points. Can also be retrofitted with the QL3.1 Mounting Set.

Compatible with all conventional luggage racks

Compatible tube diameters

8–20 mm

8–16 mm (with QL3.1 Mounting Set)

8–20 mm

The hooks can be adjusted tool-free between 10 and 16 mm in 1 mm increments. With the QL2.1 hooks, 18 or 20 mm tubes can also be used.

The QL3.1 Mounting Set can be attached to racks with a tube diameter of up to 16 mm. For tube diameters from 11 to 16 mm, the adapter clamps are also required.

The 16 mm hooks can be adjusted to 8, 10 and 12 mm using the included reducer inserts. With the QL2.1 hooks and anchoring hooks, 18 or 20 mm tubes can also be used.

More features

Lockable

with the QL2-Lock or the anti-theft device

(not included)

—

with the QL2-Lock or the anti-theft device

(not included)

One-handed operation possible

Mounting components

On the bag

On the rack

On the bag

Anti-scratch coating

On upper hooks, lower hooks & lower hook rail

Not necessary

On reducer inserts (upper hooks) & lower hook rail

All individual parts available as spare parts

View all Quick-Lock2.2 products

View all Quick-Lock3.1 products

View all Quick-Lock2.1 products

Compare similar products

Compare all bikepacking bags

QL2.2

Small, ultra-light bike bag with Quick-Lock system

Small pannier, ideal for lowrider racks or short tours

The absolute classic among panniers: robust and waterproof

80 – 90 €

135 €

155 €

Single/Pair Bag

Single bag

Pair of bags

Volume

14.5 L

20 L

Mounting System

Quick-Lock3.1
Quick-Lock2.2

Quick-Lock2.1

Quick-Lock2.1

Weight

540 – 640 g

795 g
per bag

950 g
per bag

Material

—

Weather protection & closure

Closure

Rollverschluss

Waterproof

100 % Waterproof

IP Rating

IP64
The product is dust-tight and protected against splashing water from all directions.

Mounting and carrying options

2-in-1 Bag

Mounted on

Rear rack
Front rack

Rear rack
Front rack

Rear rack

Carry Options

Griff

Griff
Detachable shoulder strap

Griff
Detachable shoulder strap

Back Padding

—

Chest Strap

Waist Strap

Self-Standing

Storage & organization

Inner Pockets

Laptop Compartment

—

External Pockets

—

Clear Pocket

Features & customization

External Attachment Points

—

Compression Options

—

Hydration Tube Port

Reflective Elements

Maße

Dimensions

Height

37 cm

42 cm

Width

26 cm

32 cm

Depth

12 cm

17 cm

Diameter

—

Length

—

Max. Load

9 – 12.5 kg

9 kg

View product page

Frequently Asked Questions

How is the the Gravel-Pack Single mounted on the luggage rack?

With ORTLIEB’s Quick-Lock mounting systems, you can easily attach the bag to the luggage rack with one hand. Removing it is just as easy. You’ll find the exact mechanism for each Quick-Lock system on our overview page.

To Quick-Lock overview

Does the Gravel-Pack Single fit my luggage rack?

ORTLIEB bags with the Quick-Lock mounting system are compatible with almost all luggage racks. The Quick-Lock2.1 and Quick-Lock2.2 systems fit racks with tube diameters from 8 mm to 16 mm. Bags with Quick-Lock3.1 require special attachment points on the luggage rack, which can easily be retrofitted using a mounting kit if necessary.

To the QL3.1 mounting kit

How does the ORTLIEB Gravel-Pack differ from other ORTLIEB bike bags such as the Sport-Roller or Back-Roller?

The ORTLIEB Gravel-Pack shares many characteristics with other ORTLIEB bike bags such as the Sport-Roller or Back-Roller. It is also waterproof to IP64, extremely robust, and equipped with the proven roll closure. The volume is 14.5 liters per bag, the same as the Sport-Roller.
The key difference lies in its intended use: the Gravel-Pack is specifically designed for bikepacking and off-road touring. It is made from particularly lightweight, abrasion-resistant nylon fabric, making it ideal when every gram counts. Additional comfort features such as outer pockets or organizers were deliberately omitted to save weight and maximize freedom of movement in rough terrain.

How securely does the Gravel-Pack sit on the bike during rides on rough terrain?

The Gravel-Pack stays securely on the bike even on demanding terrain. Thanks to the robust Quick-Lock mounting system, the bags lock reliably onto the rack and remain stable even under vibrations and potholes. The low center of gravity also ensures balanced weight distribution and stable handling.

Where is the Gravel-Pack Single manufactured?

The Gravel-Pack Single is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

Is the Gravel-Pack Single worth the price?

ORTLIEB products stand for durability and repairability. The Gravel-Pack Single is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.
Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.
Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
