Thru Axle M6-Connector

Adapter thru axle with integrated M6 threads for versatile mounting options.

Thread pitch: 1 mm

1 mm 1.5 mm 1.75 mm

In stock Delivery time: 2-3 business days

SKU: F78112

35 €

Tax included. Shipping calculated at checkout

For orders over €120, we'll sponsor 1 m² of rainforest for free. Find out why and how it works here

Thru Axle M6-Connector

35 €

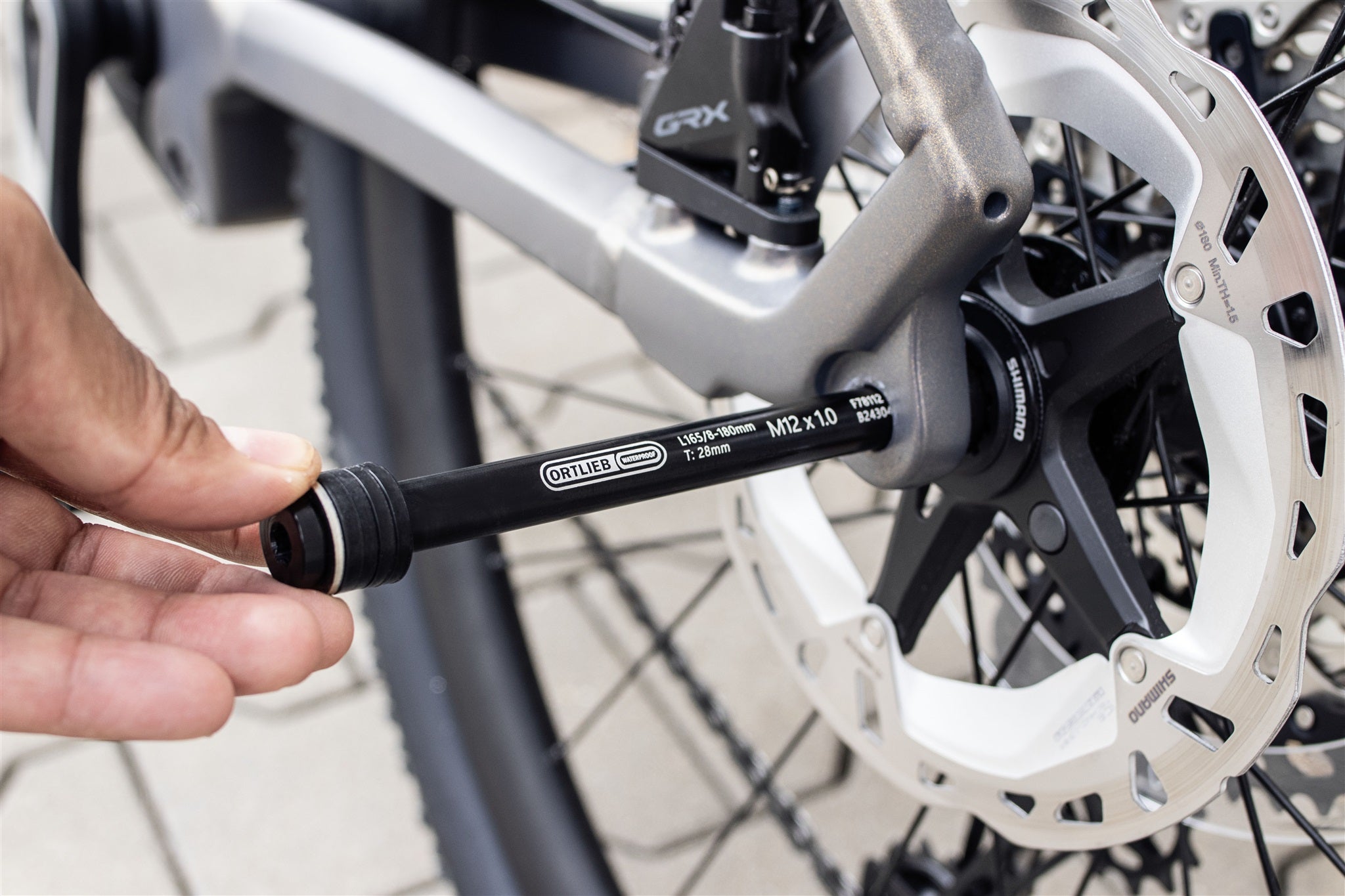

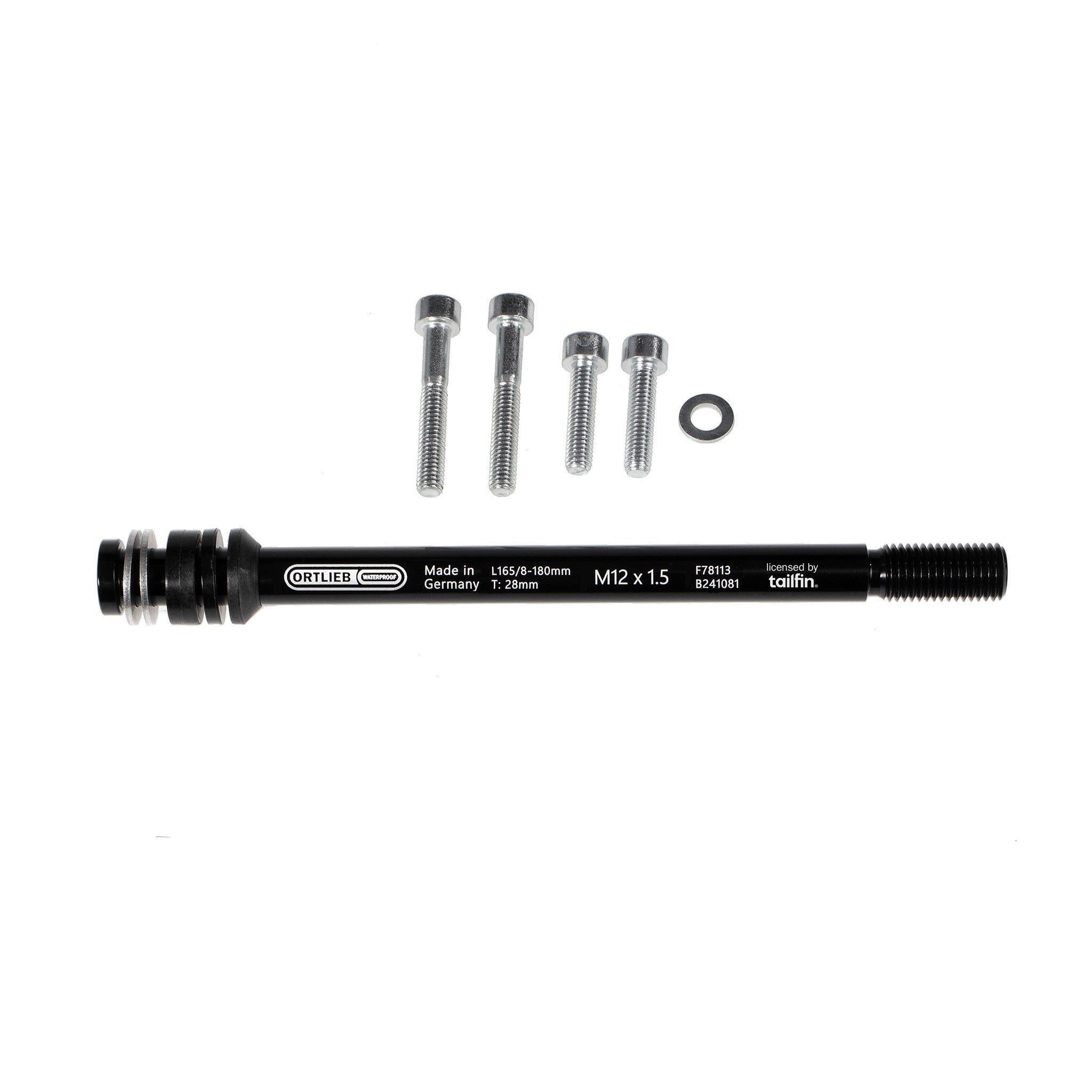

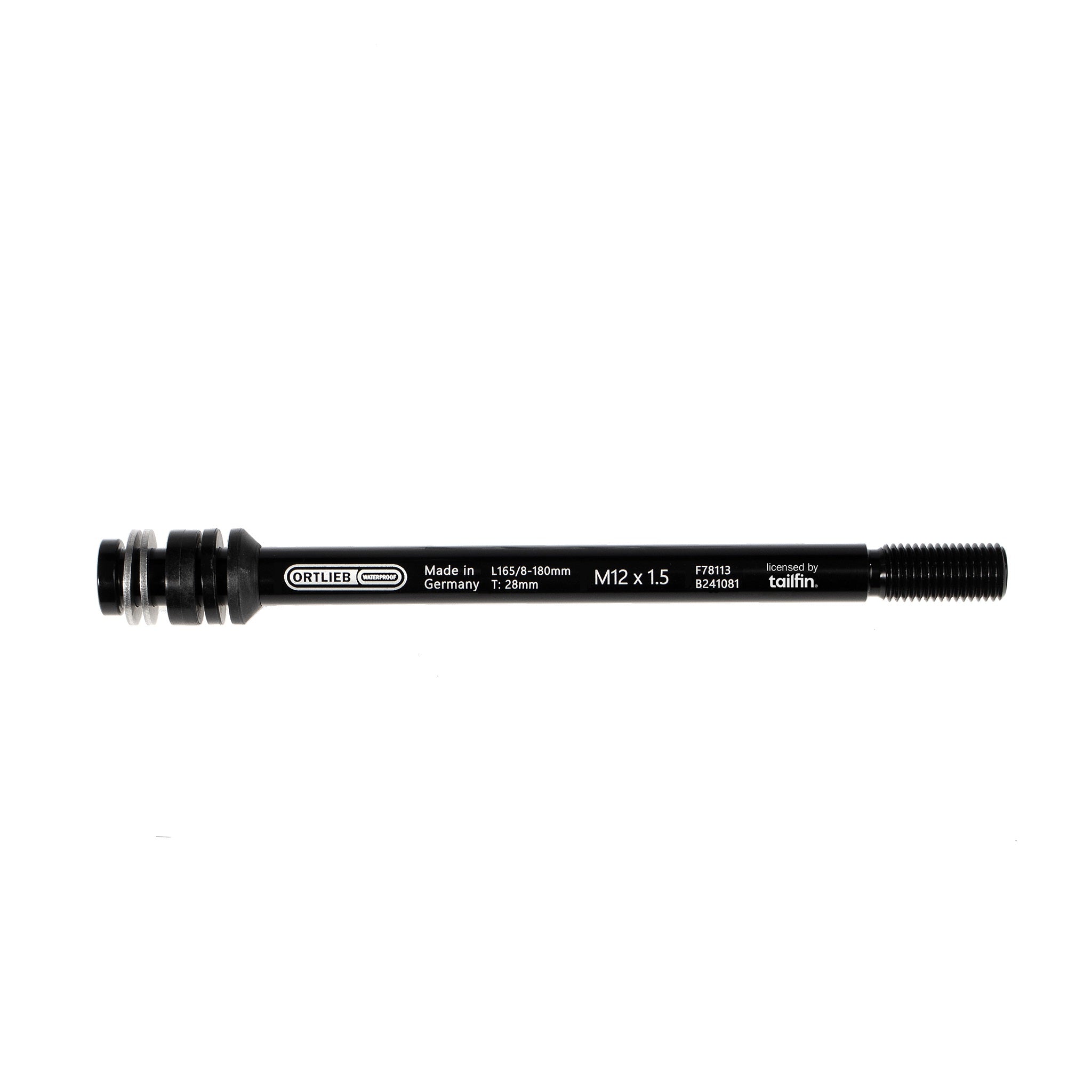

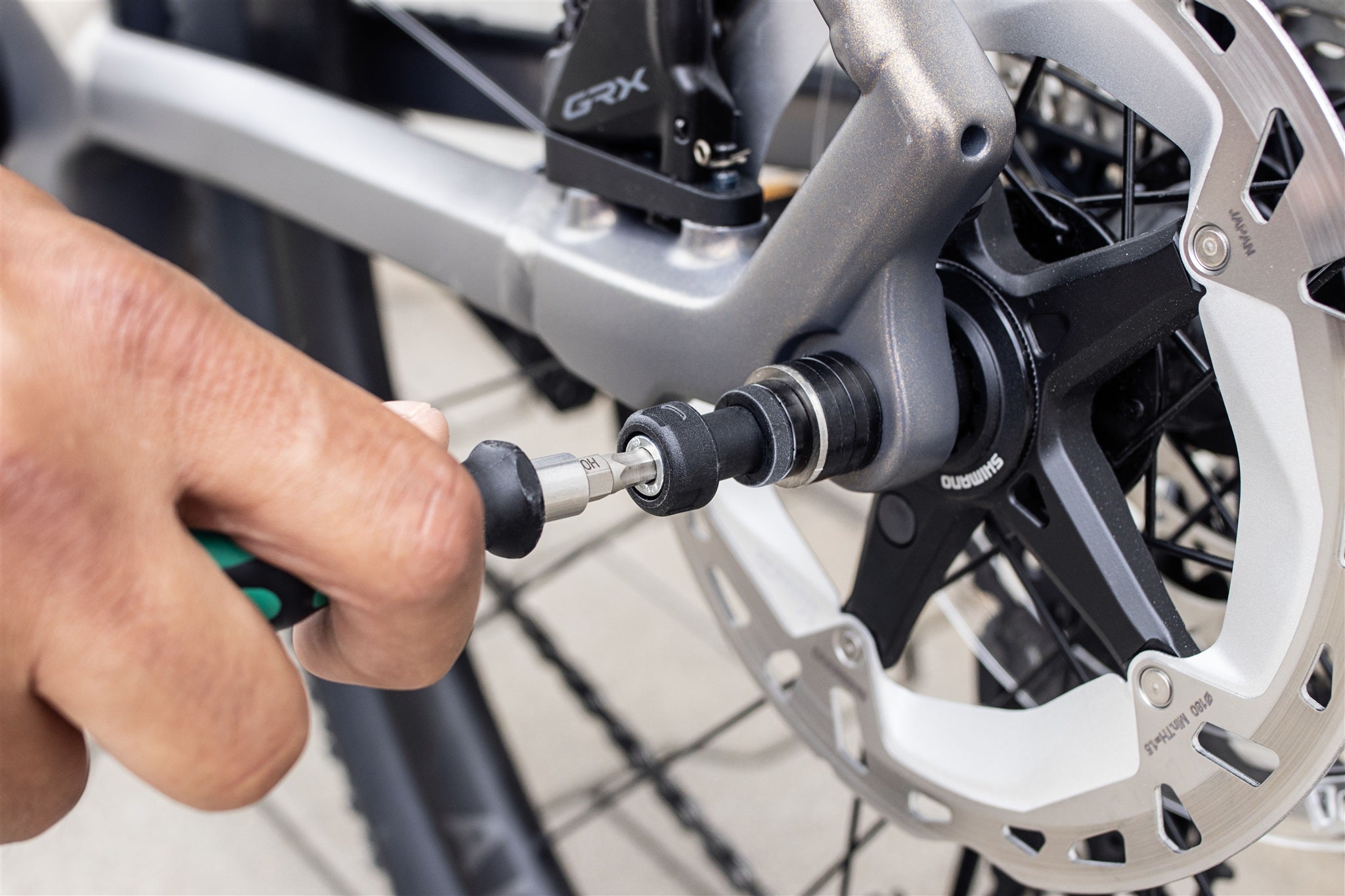

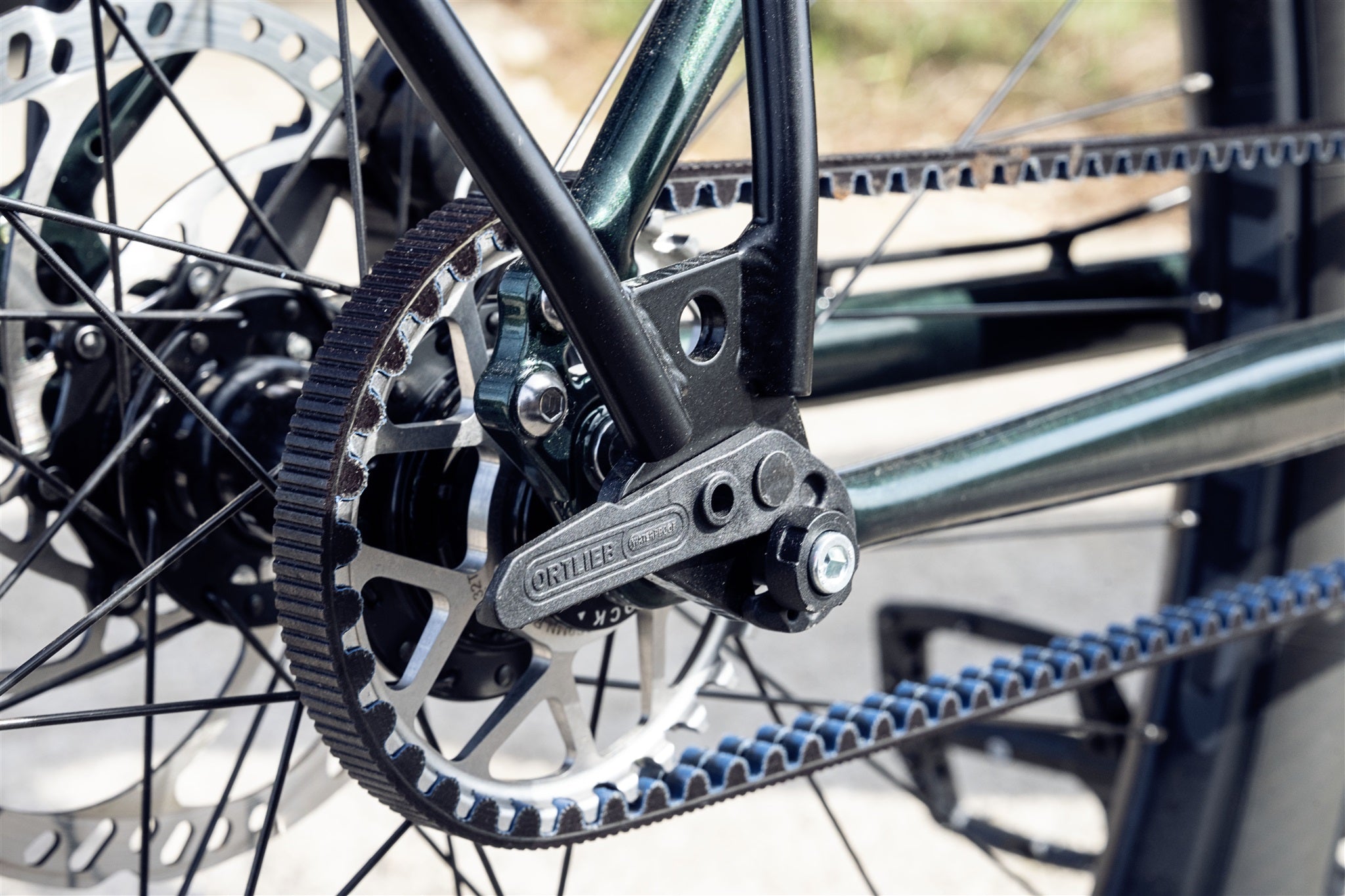

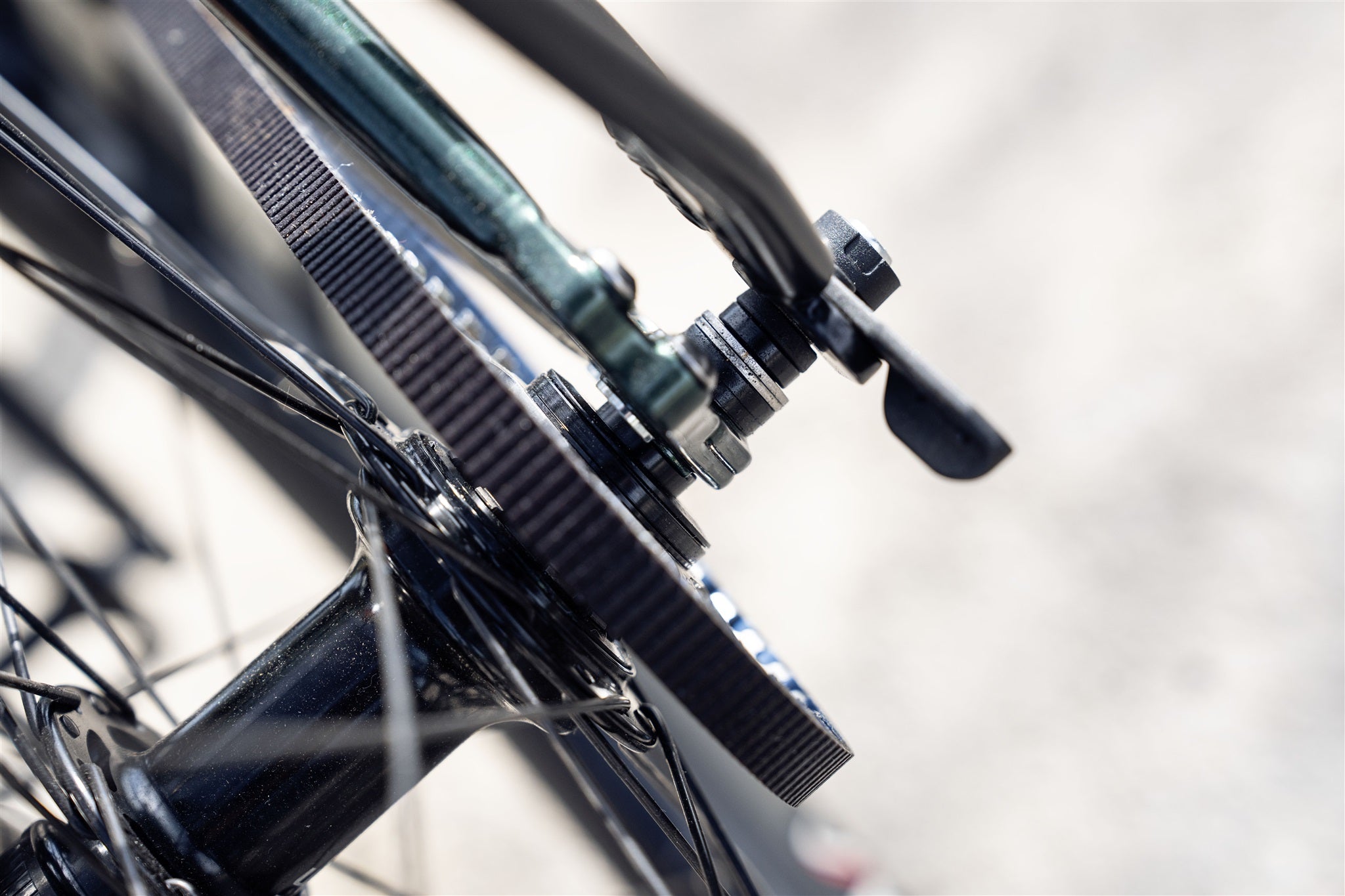

The Thru Axle M6-Connector is a universal adapter thru axle designed for the secure mounting of racks or trailers. Crafted from high-quality aluminum with integrated M6 threads, it offers exceptional versatility and durability.
This adapter thru axle replaces axles up to 180 mm in length and can be adjusted to fit axle lengths between 165 mm (tapered) and 168 mm to 180 mm using the included spacers. It is also compatible with shorter axle lengths, provided the axle can be screwed through the frame.
Available in three thread pitches and fully compatible with SRAM UDH/Transmission, this thru axle is the ideal solution for demanding applications, ensuring a secure and reliable fit.

Specifications

Width: 18 cm
Weight: 54 g

Downloads

Instruction
Datasheet

Warnings and safety information

Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 10 km, 50 km, 100 km and 200 km and retighten if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 26 kg in total. If necessary, weigh your load to ensure that you do not exceed the maximum payload.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
deinservice@ortlieb.com
